MANFREDI OSCAR - MA.RE Sas di Manfredi Susanna & C.
Food & beverage
MAIUS HOT TROLLEYS
Our Hot Trolleys for BOILING, working in a bain-marie, are built entirely of stainless steel and can therefore be used in bars and restaurants and for catering in general.
These types of trolleys are equipped, in the basic version, with a minimum three internal tanks used to contain the food and broth (each gastro-norm tank of 530x325 mm depth 150 or submultiples)
In the GN1 / 1 tanks it is possible to insert a special stainless steel accessory of our design called “ Lift “, which allows you to extract the food from the broth and cut it comfortably directly inside the containment tank.
It is possible to vary the combination of GN tanks according to the customer ’s.
To any type of flooring, anti-oil and anti-vibration.
Below the main tank there are two very useful shelves, completely made of stainless steel, where plates and various accessories can be housed in the
lower shelf.
The trolleys can also be used to keep other foods warm (soups, first courses, side dishes, etc.).
They are trolleys used in particular for GRAN BOLLITO ALL ’ITALIANA.
MAIUS overall dimensions: cm. 63x113x91 H
HOT TROLLEY ACCESSORIES:
TOOL HOLDER: particular device to hold forks and knives,made of stainless steel, applicable in any position around the trolley band;
PLATE HOLDER: useful device applicable in any position around the trolley band, where you can lay the plate to be filled;
LIFTER: particular accessory made of stainless steel and food-grade plastic material, useful for cutting the
food directly into the containment tank by extracting it from the broth;
EXTERNAL CUTTING BOARD: in stainless steel and white food plastic material 25.5x45.5 cm applicable in any position around the trolley fascia;
PYRAMID LID: New pyramidal lid in shockproof transparent plastic material, for GN 1 / 1 tubs.
MINUS HOT TROLLEYS
New Hot Trolley of smaller dimensions, with the possibility of combining tubs with two-three-four tubs of varying dimensions. This trolley can only contain one lift system.
Complete with all accessories. cm. 63x87x91H
OPERATION: Our Hot Trolleys, CE marked, work in a bain-marie - 220 Volts: a resistance is positioned in the main tank which heats the water up to a temperature of 70 °-80 ° C .; inserting the vats inside the main vat, you can maintain the temperature of your food for an entire period of table service.

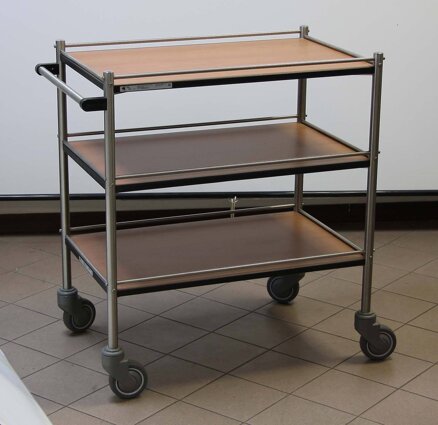

SYNTESYS TROLLEY WITH THREE FLOORS
Technical features: Newly designed trolleys, easy to disassemble. The loading surfaces are made of 18 mm thick wood fiber panels, ennobled on all surfaces, in new cherry or graphite gray color. The tubular structure metal è stainless steel. The coupling of the metal parts with the wood, creates an aesthetically harmonious complex, which adapts to all types of furniture. The large diameter wheels allow a remarkable smoothness of the trolley, even if loaded with kg.100, its normal capacity.On request we can supply the same trolleys with 18-10 stainless steel shelves.
MODEL SY 1.3.X Tubular structure in stainlesssteel Packaging dimensions of the disassembled trolley cm.77x60x16 Weight kg.23
MODEL SY 2.3.X Tubular structure in stainless steel Packaging dimensions of the disassembled trolley cm.95x60x16 Weight Kg. 23
Cherry top “ classictype ”
Graphite top “ modern type “
ACCESSORY TROLLEYSSYNTESYS 2 MOD. 750
DOME FOR CAKE SAND CHEESE MOD. 750 applicable to Syntesys type 2 service trolleys.
The internal parthas a heightof 16 cm. The dome model 750 can be mounted on Syntesys 2 trolleys with a simple snap action.
SYNTESYS TWO FLOOR TROLLEY
Technical Characteristics:
Newly designed trolleys, easily removable. The loading surfaces are made of 18 mm thick wood fiber panels, faced on all surfaces, in new cherry or graphite gray color. The tubular metal structure è in stainless steel. The coupling of the metal parts with the wood creates an aesthetically harmonious complex, which adapts to all types of furniture. The large diameter wheels allow
a remarkable smoothness of the trolley, even when loaded with kg .100, its normal capacity On request we can
supply the same trolleys with 18-10 stainless steel shelves.
MODEL SY 1.2.X Tubular structure in stainless steel Packaging dimensions of the disassembled trolley cm.77x60x16 Weight kg.23
MODEL SY 2.2.X Structure tubular stainless steel Packaging dimensions of the disassembled trolley cm.95x60x16 Weight Kg.23
Top in cherry wood “ classic type ”
Graphite top “ modern type “
ACCESSORY TROLLEYS SYNTESYS 2 MOD.750
DOME FOR CAKES AND CHEESE MOD. 750 applicable to Syntesys type 2 service trolleys
Top 45x90 cm
The lower part is in shockproof plastic material, the upper part is formed by two transparent half domes in shockproof plastic, the The internal dome has a height of 16 cm.
The dome model 750 can be mounted on Syntesys 2 trolleys with a simple snap action.
REFRIGERATED TROLLEY WITH EUTECTIC PLATES
Supporting structure in AISI 304 stainless steel, with two or three shelves, tops
in wood fiber covered in all surfaces, cm. 45 x90 color of new cherry
and graphite gray tops.
Dome made up of a glazed support tray in molded plastic material cm . 45 x 90 and two semi-lids in transparent perspex equipped with full length hinges in stainless steel.Maximum height of the internal compartment 16 cm.
Equipped with one or more eutectic plates in plastic
material, standard size 530x325 mm. - 28 mm thick or submultiple.
To be frozen in advance at –11° C.
Release temperature –3 ° C.
A perforated stainless steel tray is supplied, to support sweets / cheeses or fish to serve with the Refrigerated trolley.
Upon request, the eutectic plates in plastic material can be supplied in stainless steel.
